Szczegóły Produktu:
Zapłata:
|
| Męska wtyczka OBD2: | Standardowy | Pins of OBD2 male plug: | copper, nickel-plated or gold-plated |
|---|---|---|---|
| Szpilki z tyłu: | Kąt prosty 90 stopni | Housing material: | PA66 |
| Working Temperature: | −25℃ ~ +100℃ | Contact Resistance: | 3 ohm max. |
| Podkreślić: | obd2 male connector,obd connector male,90 degree obd connector |
||

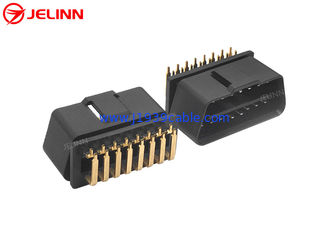

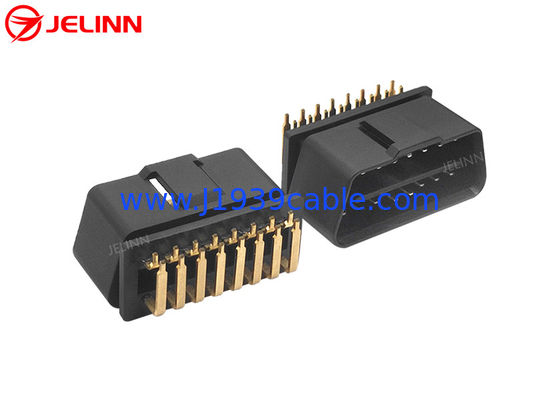

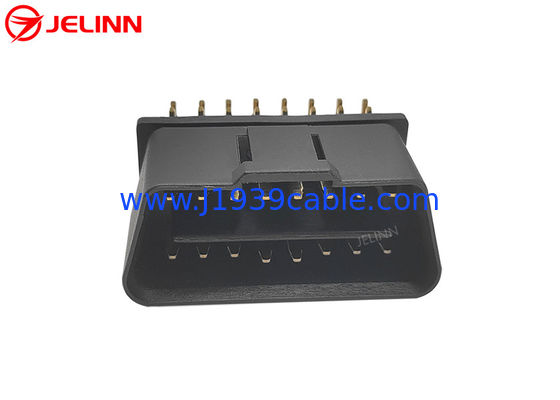

OBD 2 OBD2 16pin Male Connector With 90 Degree Right Angle Pins Bent Towards the Narrow Side
Specification
| OBD2 male plug | standard |
| Pins of OBD2 male plug | copper, nickel-plated or gold-plated |
| Pins at the back | right angle 90 degree |
| Number of pins | 16 |
| Material of OBD2 male plug | PA66 |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +100℃ |
| Warranty | 1 year |
This is an OBD2 OBDII male plug, not OBD1.
We made the plastic mold of this OBD2 OBDII male plug by ourselves because we have a full set of machines and equipments and an excellent team of staff for making plastic molds. We also have injection molding machines which can manufacture these OBD2 OBDII male plugs according to the mold.

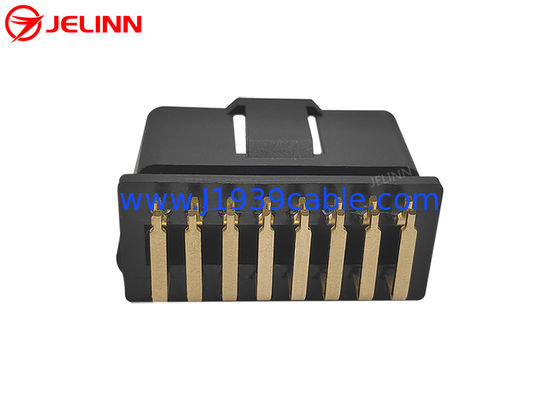

The pins at the back of this OBD2 OBDII male plug are right angle 90-degree. We also have OBD2 OBDII male plugs with other shapes of pins at the back, such as straight or curved pins.
Pin assignment or pin out
The pin assignment or pin out of 16-Pin J1962 OBD2 OBDII male plug is like this:
Application
These OBD2 OBDII male plugs can be used to manufacture OBD2 cables or OBD2 splitter Y cables. They can also be assembled into telematics, M2M devices, IoV (Internet of Vehicles) devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools, car performance tuning tools, key programmers and OBD2 window closers.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
